Leaf Spring Bushing-Set Energy 2.2109G

•       Value: Same Energy Suspension 2.2109G bushing kit sells $90–120 at major parts retailers — every bushing, sleeve, and grease packet included, ready to install.

•       Urgency / Season: Spring suspension overhaul season is here — get the rear leaf spring bushings rebuilt before summer trail days and weekend wrenching ramp up.

•       Trust / Quality: Energy Suspension is a 40+ year US polyurethane specialist — Hyper-Flex compound that lasts 5–10 times longer than the worn-out rubber it replaces.

The XJ has been through a few hundred thousand miles. The rear suspension is starting to creak. This is the box that fixes it. A full kit of polyurethane bushings molded to the exact dimensions of the original rubber, sized for the 84–01 Cherokee and 86–92 Comanche rear leaf packs — same Hyper-Flex compound Jeep restorers have trusted for forty years. Install it on a Saturday afternoon with a tube of grease, and the squeak is gone for a decade. The wobble too.

Key Features

•       Complete Rear Leaf Spring Bushing Kit → Includes every bushing half, steel center sleeve, and grease packet needed to rebuild both rear leaf spring bushing locations on the Jeep Cherokee XJ, Comanche MJ, and Wagoneer. One box, both sides, ready to press in.

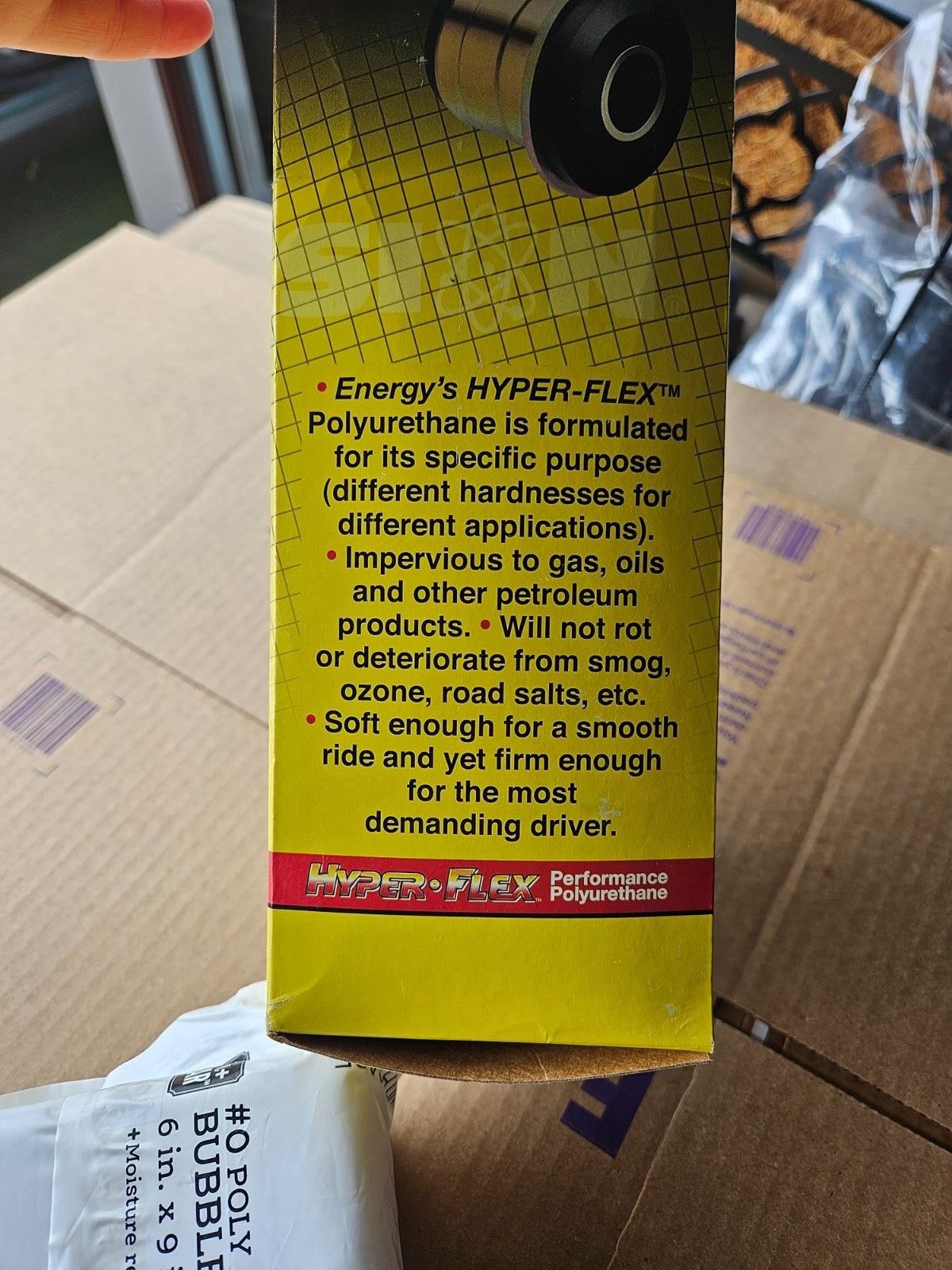

•       Hyper-Flex Polyurethane Compound → Energy Suspension’s signature polyurethane: harder than rubber for sharper handling and zero deflection, softer than race-spec urethane for daily-driver comfort. Same compound used in restoration shops for four decades.

•       5–10× Service Life Over Original Rubber → Polyurethane is impervious to gas, oils, road salts, smog, and ozone — the things that crack and squish OE rubber bushings into nothing after 30 years. Install once and forget.

•       Direct-Fit OE Dimensions → Molded to the exact dimensions of the factory rubber, so the bushings press into the stock leaf spring eyes and shackle mounts without modification, machining, or grinding.

•       Made in the USA Since 1984 → Designed, formulated, molded, and packaged at Energy Suspension’s San Clemente, California facility — the world’s largest manufacturer of precision-engineered polyurethane components.

•       Steel Center Sleeves Included → Pre-cut steel center sleeves are included in the kit — no need to source separate hardware or cut sleeves to length.

•       Polyurethane-Safe Grease Included → Energy Suspension’s polyurethane-compatible bushing grease is in the box. Use it at install to prevent squeak; conventional chassis grease will swell polyurethane and shorten service life.

Product Specifications

•       Brand: Energy Suspension

•       Part Number: 2.2109G

•       UPC: 703639260172

•       Type: Complete Rear Leaf Spring Bushing Set

•       Color: Black (Hyper-Flex polyurethane)

•       Position: Rear leaf spring eyes + shackle mounts

•       Compatible — Jeep Cherokee (XJ): 1984–2001

•       Compatible — Jeep Comanche (MJ): 1986–1992

•       Compatible — Jeep Grand Wagoneer: 1984–1993

•       Compatible — Jeep Wagoneer: 1984–1990

•       Material: Hyper-Flex polyurethane + steel center sleeves

•       Compound: Hyper-Flex (Energy Suspension’s proprietary polyurethane formulation)

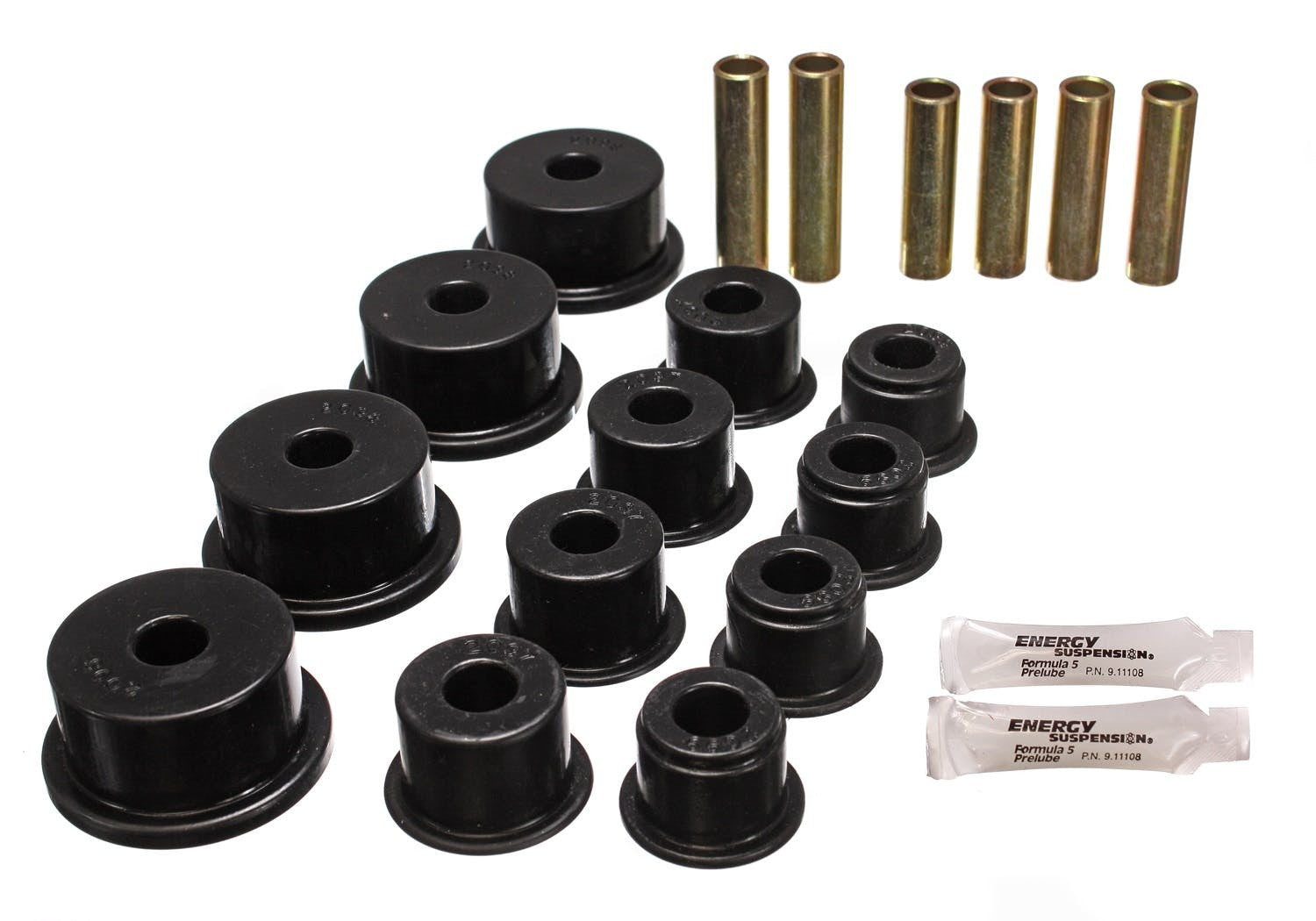

•       Kit Contents: 12 polyurethane bushing halves (three sizes) + 2–4 steel center sleeves + polyurethane grease packet(s) — verify exact count in-box

•       Installation: Requires a press or large bench vise. Cannot be installed with a hammer alone

•       Replaces: Original Mopar/AMC factory rubber leaf spring bushings (rear)

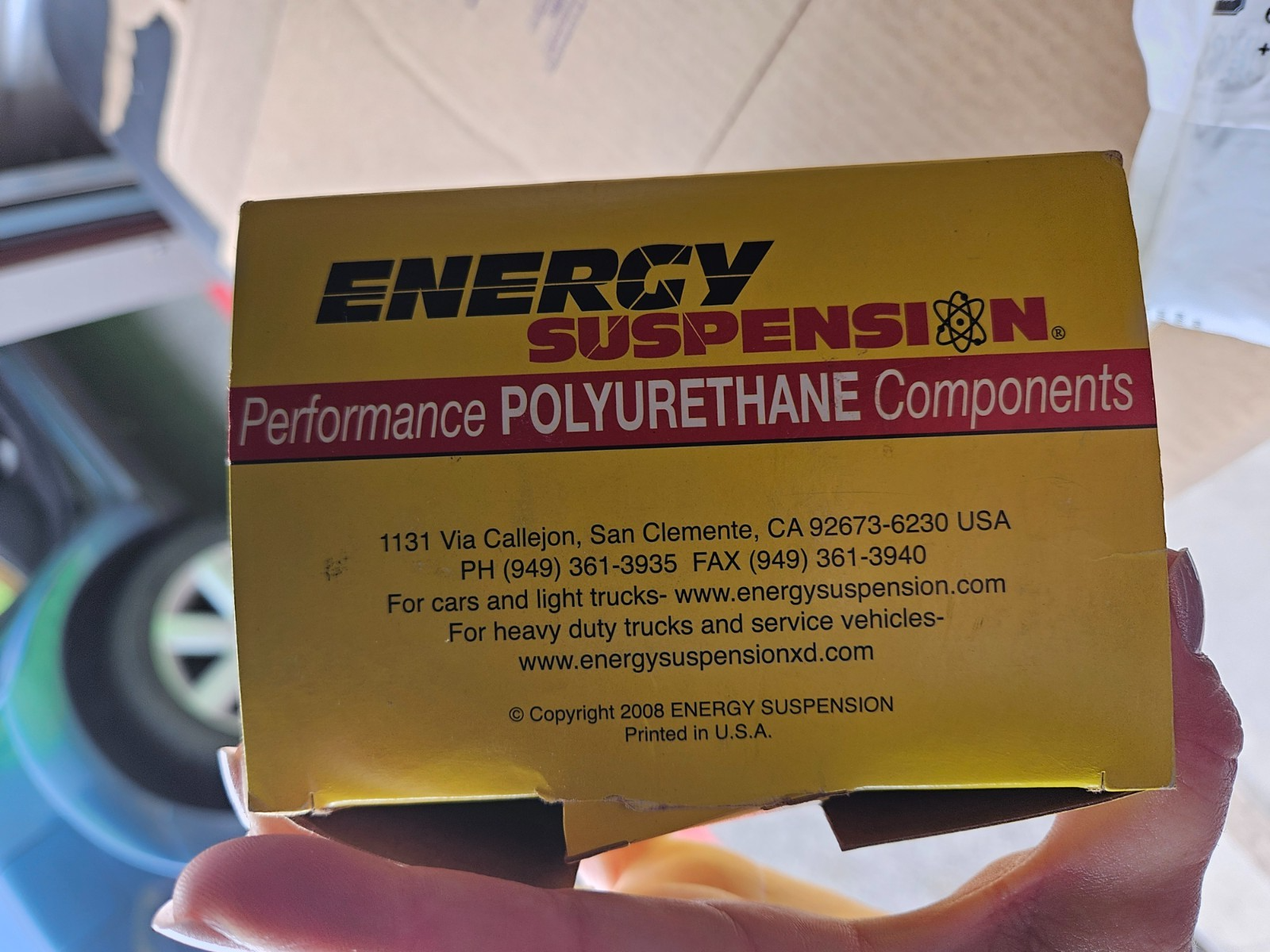

•       Country of Manufacture: USA — San Clemente, California (1131 Via Callejon)

•       Manufacturer Founded: 1984 (41 years)

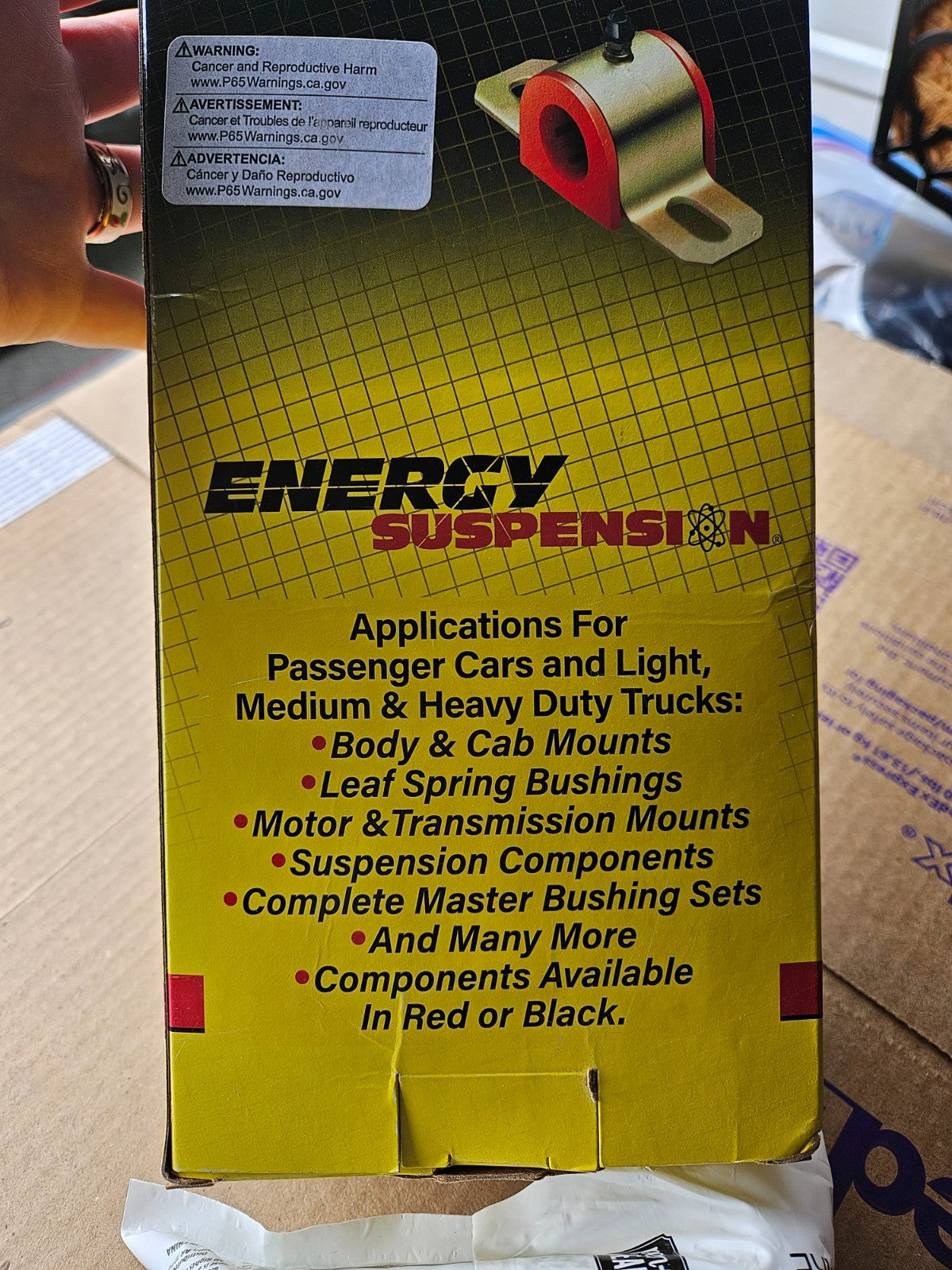

•       CA Prop 65: Standard label included (polymer products)

•       Warranty: Energy Suspension manufacturer warranty (verify terms — long-standing limited warranty against material/workmanship defects on the polyurethane)

•       Quantity: 1 complete kit (covers both rear leaf spring locations)

•       Condition: New (sealed retail box; supplier-source)
