24V 15A Battery Charger Tennant T2 T3 T5 T7 Nobles SS3 SS5 Clarke Floor Scrubber

•     Every day your floor scrubber sits dead is a day of labor cost for manual mopping, slower cleaning routes, or scrambling to rent a replacement. OEM chargers direct from Tennant, Nobles, or Clarke parts departments often run $150-300+ with 3-7 business-day shipping. This drop-in aftermarket replacement is a fraction of OEM pricing and ships same or next day with tracking — your cleaning crew is back on the scrubber Monday morning.

•     Exact electrical match for the stock 24V 15A OEM chargers shipped with Tennant T5e, Nobles SS5, Clarke Focus II, and related models. Anderson SB50 gray connector is the standard commercial scrubber charging interface. Lead-acid three-stage automatic charging, CE-approved, five safety protections (overcharge / overheat / short circuit / reverse polarity / over current). Same electrical behavior as the OEM unit you're replacing.

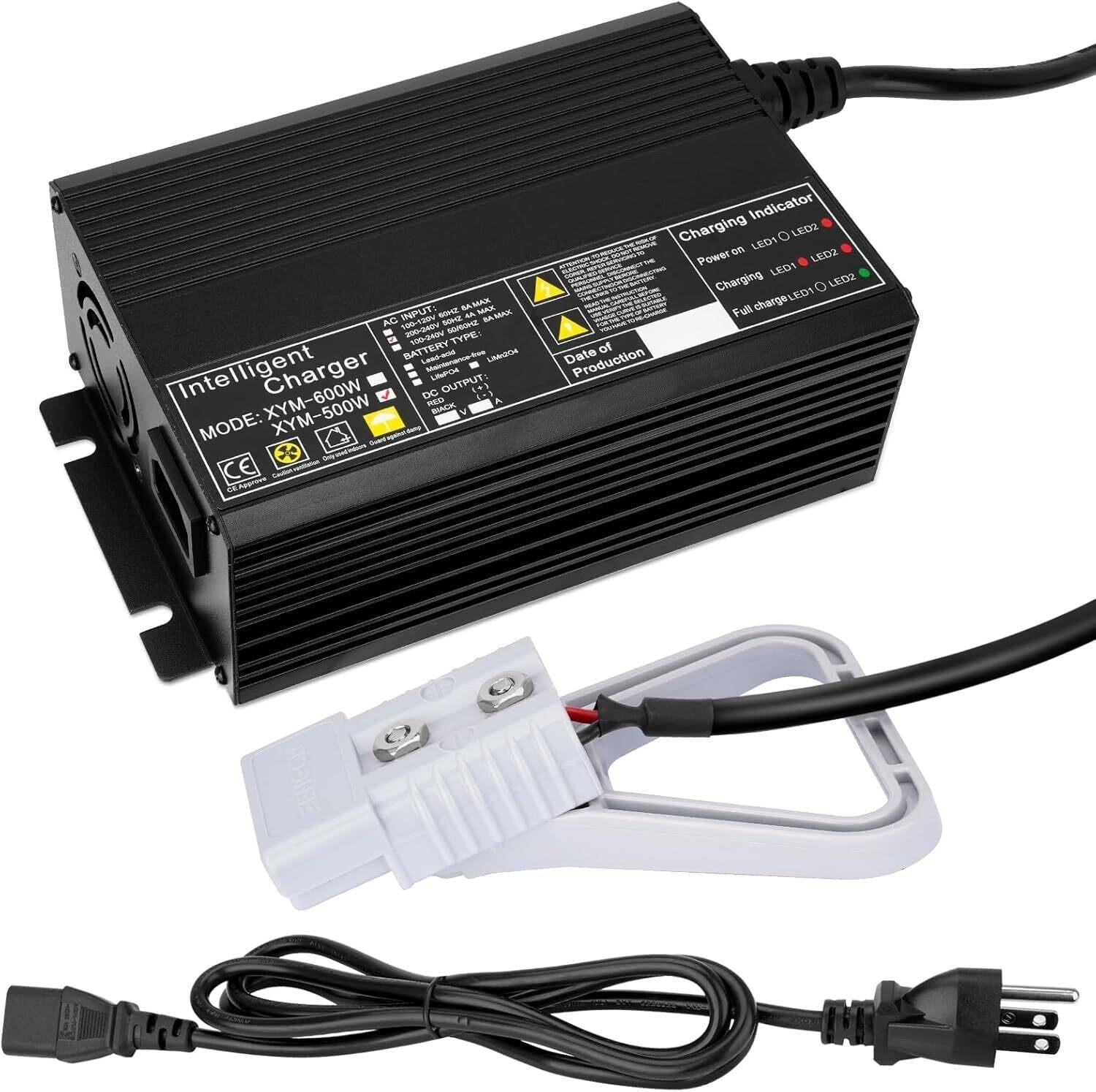

Drop-in replacement 24V 15A battery charger for commercial floor scrubbers and sweepers. Equipped with an Anderson SB50 style connector (GRAY housing, shown in photos) and a second loose gray SB50 connector for replacement/spare use. Compatible with Tennant T2, T3, T5, T7, T300, 1610; Nobles SS3, SS5, Speed Scrub Ride; Clarke Focus II, Encore S20, Boost L20; TASKI Swingo 1650/1850/XP; Viper AS430C; NSS Wrangler 26/33; Nilfisk-Advance SC450; Brain Corporation ICE RS26 GEN2; Tomcat (Factory Cat) 35; Triple S Panther 20B; Kent Razor20B. For lead-acid batteries only (AGM, Wet/Flooded, Gel) — NOT for LiFePO4 or lithium-ion systems.

Key Features

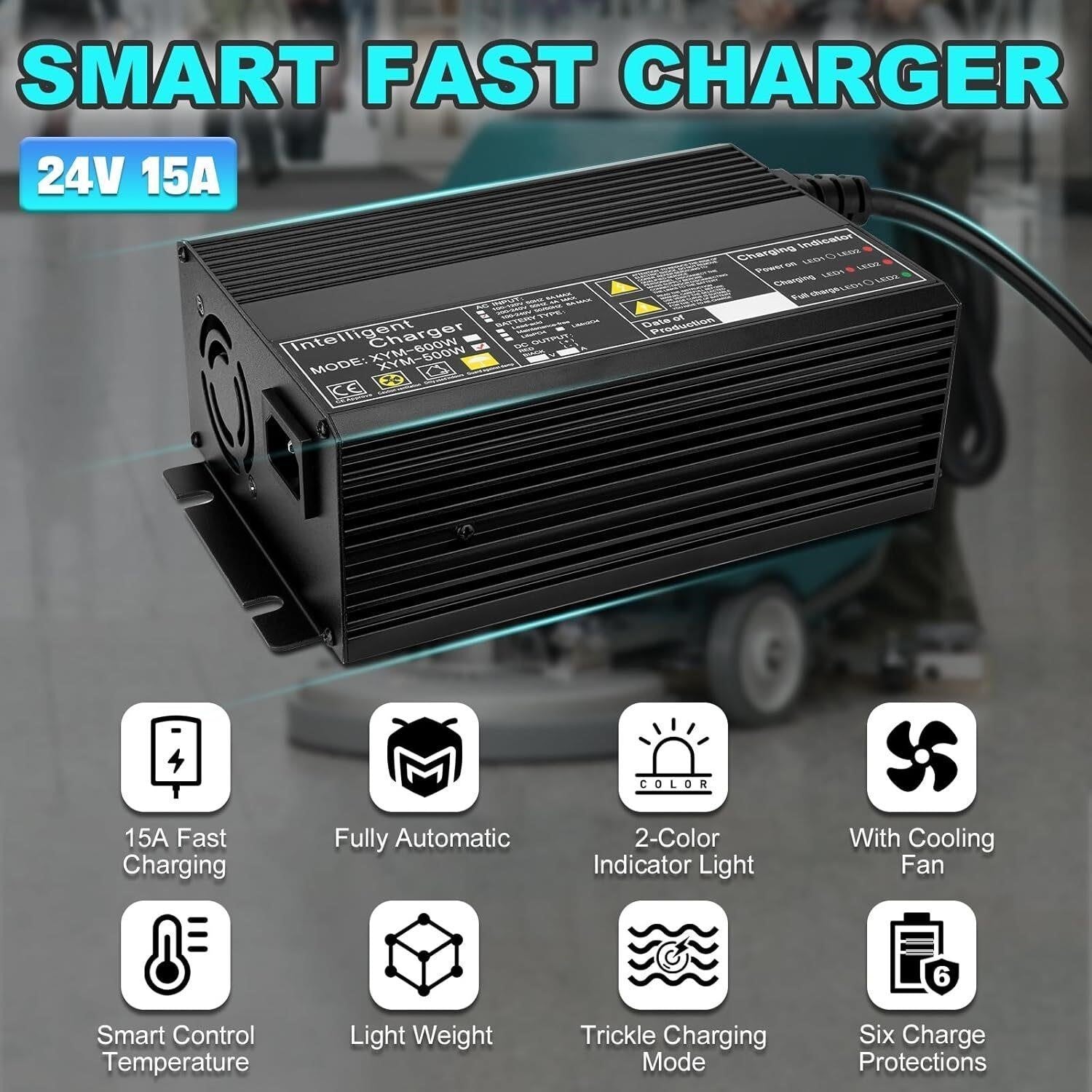

•     24V 15A Output — Fast, Reliable Commercial-Grade Charging → Delivers 24V DC output at 15 amps — a 360W charging rate that fully recharges a typical 100-250Ah scrubber battery bank overnight. Same electrical specs as the OEM chargers shipped with Tennant T5e, Nobles SS5, Clarke Focus II and similar models. Drop-in replacement when your original charger fails.

•     Intelligent Three-Stage Charging → Automatic bulk → absorption → float cycle with auto-shutoff at full charge. Prevents overcharging, extends battery bank life, and eliminates the risk of electrolyte boil-off on wet-cell batteries. Charging indicator LEDs show status (Power On / Charging / Full Charge).

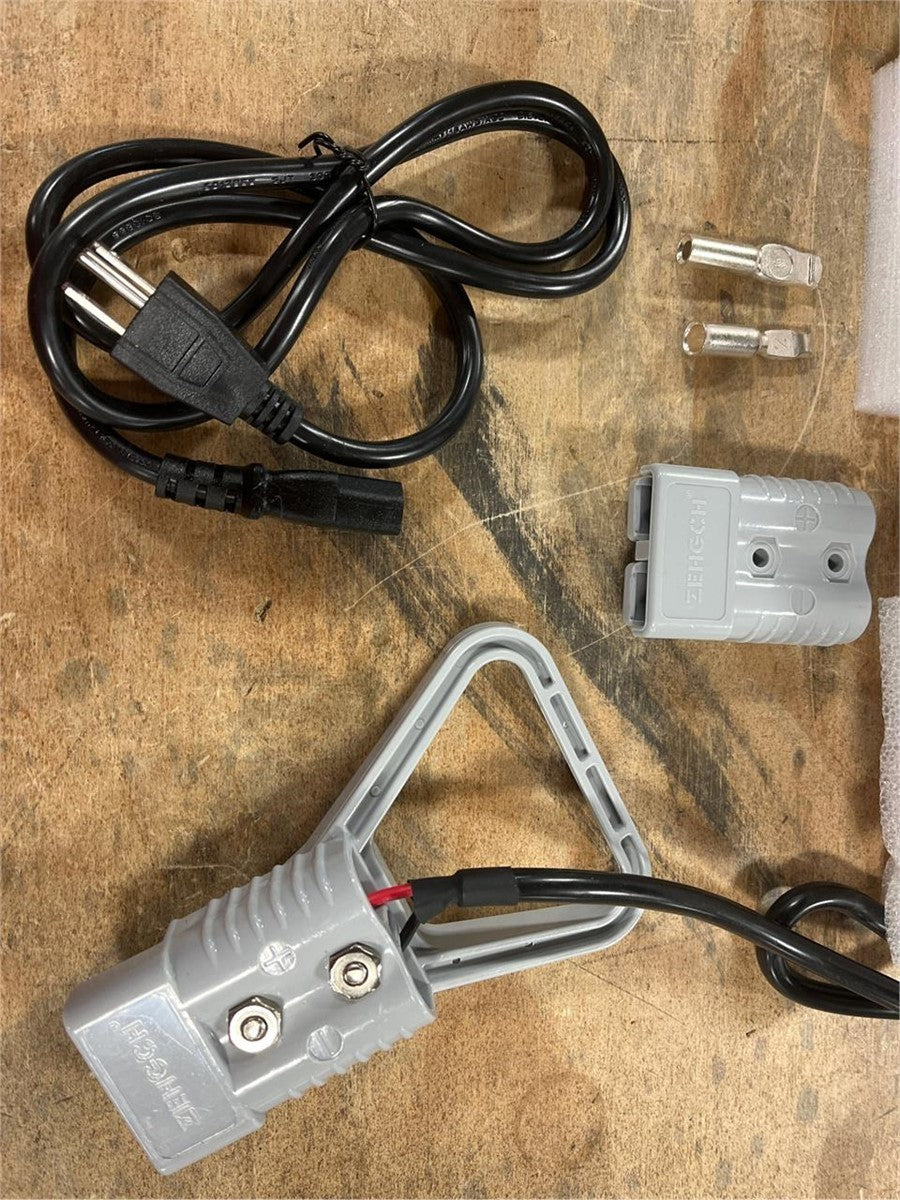

•     Anderson SB50 Gray Connector Included → Gray Anderson SB50-style quick-disconnect connector pre-wired on the DC output side, plus a second loose gray SB50 connector in the box for spare or replacement use. Compatible with equipment using gray-keyed SB50 housings (certain Clarke, Nilfisk-Advance, and Brain Corporation models). 35mm / 1-3/8" connector width, fits standard SB50 receptacles.

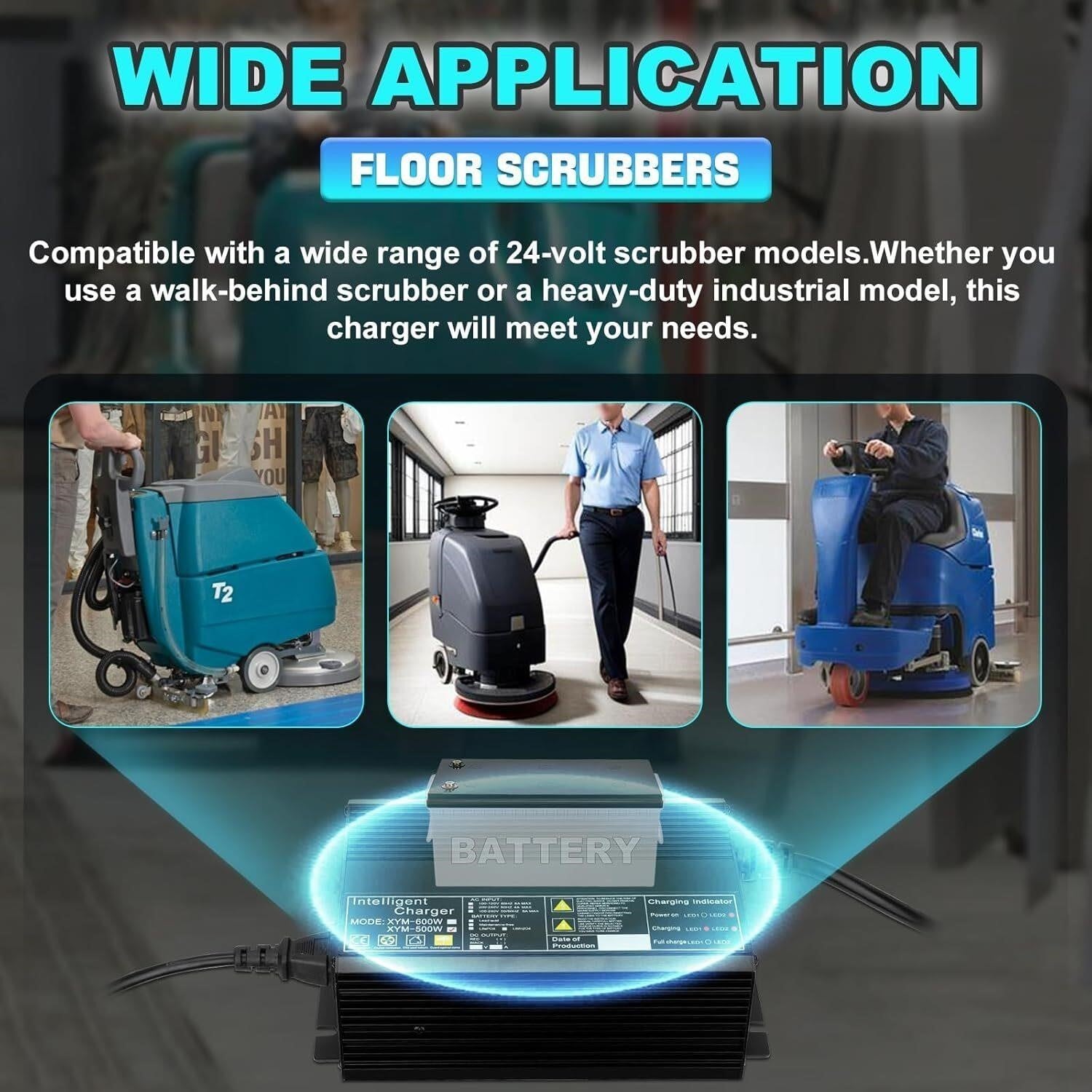

•     Wide Commercial Equipment Compatibility → Works with: Tennant T2, T3, T5, T7, T300, 1610; Nobles SS3, SS5, Speed Scrub Ride; Clarke (Alto) Focus II, Focus II Boost L20, Focus II S20, Encore S20; Kent (Nilfisk-Advance) Razor20B; Nilfisk-Advance SC450; TASKI by Diversey Swingo 1650, Swingo 1850, Swingo XP; Viper AS430C Industrial Auto Scrubber; NSS Enterprises Wrangler 26, Wrangler 33; Brain Corporation ICE RS26 GEN2; Tomcat (Factory Cat) 35; Triple S (SSS) Panther 20B. Confirm your equipment uses a 24V lead-acid battery bank and a gray SB50 charging port before ordering.

•     Lead-Acid Battery Type Support (AGM, Wet, Gel) → Supports all three lead-acid chemistries: AGM (absorbed glass mat), Wet/Flooded (traditional lead-acid), and Gel. Compatible bank configurations: 4× 6V batteries in series OR 2× 12V batteries in series, up to 250Ah total capacity. NOT compatible with LiFePO4 or lithium-ion battery systems — those require dedicated lithium chargers with different charge profiles.

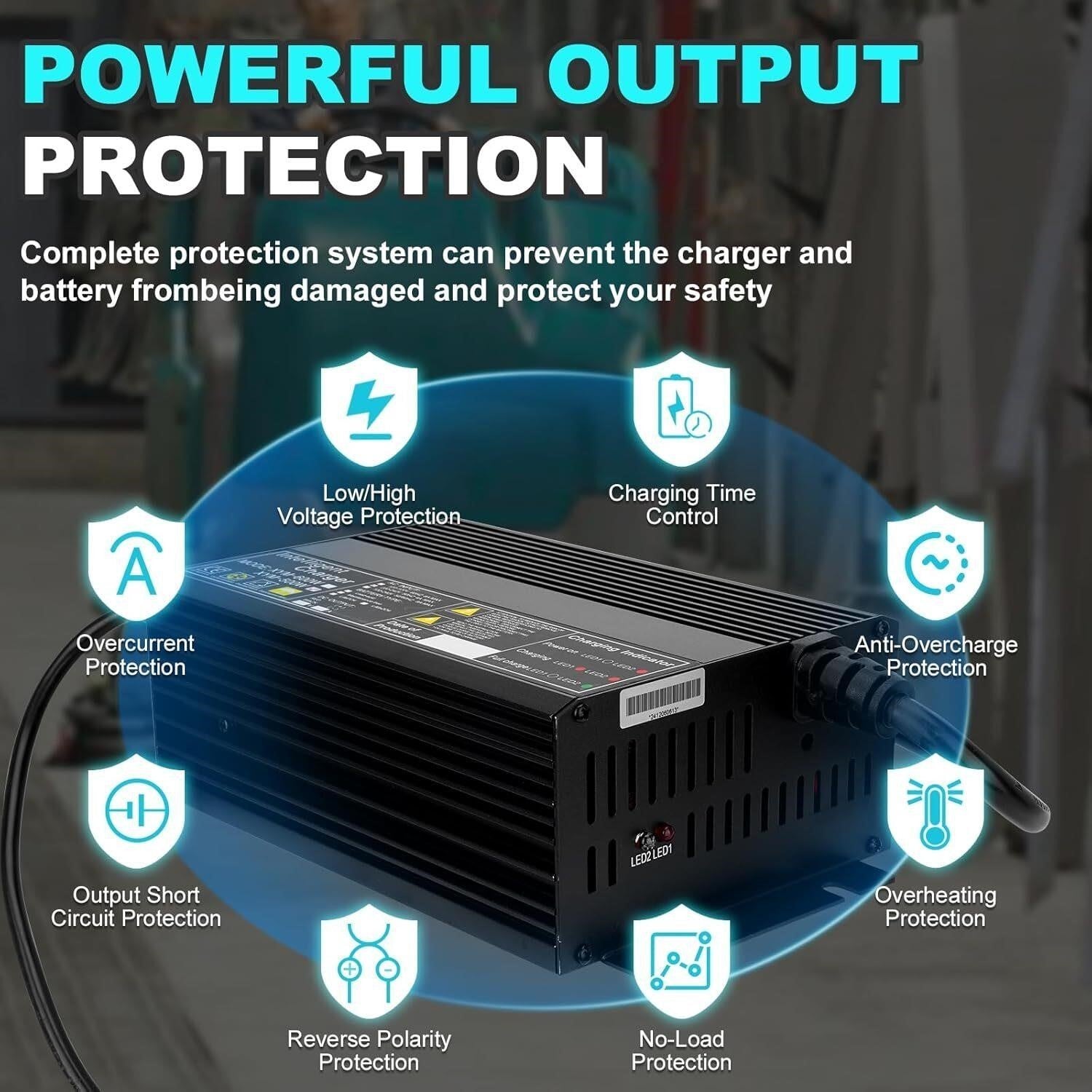

•     Multiple Safety Protections → Overcharge protection, overheat protection, short-circuit protection, reverse-polarity protection, and over-current protection. Integrated cooling fan for heat dissipation during long charging cycles. CE-approved, built to commercial-use standards.

•     Plug-and-Play AC Input → Universal AC input: 100-120V 60Hz 5A max, OR 100-240V 50/60Hz 4A max, OR 200-240V 50/60Hz 8A max. Uses a standard 3-prong IEC C13 AC power cord (included) — same cord as most desktop PCs and commercial equipment, so replacements are trivially available if needed.

Technical Specifications

•     Brand: JURPLIX (Amazon storefront; also sold under generic "Intelligent Charger" / "XYM-500W" labels)

•     Model: 24V 15A Floor Scrubber Charger / XYM-500W

•     Output voltage: 24V DC

•     Output current: 15A

•     Output power: 360W

•     AC input: 100-120V 60Hz 5A max / 100-240V 50/60Hz 4A max / 200-240V 50/60Hz 8A max

•     Battery compatibility: Lead-acid — AGM, Wet/Flooded, Gel ONLY

•     Battery bank: 4× 6V or 2× 12V lead-acid in series, up to 250Ah

•     DC connector: Anderson SB50 style, GRAY, 35mm / 1-3/8" width

•     AC cord: Standard 3-prong IEC C13 (NEMA 5-15P to IEC 60320 C13)

•     Charge algorithm: 3-stage automatic (bulk / absorption / float)

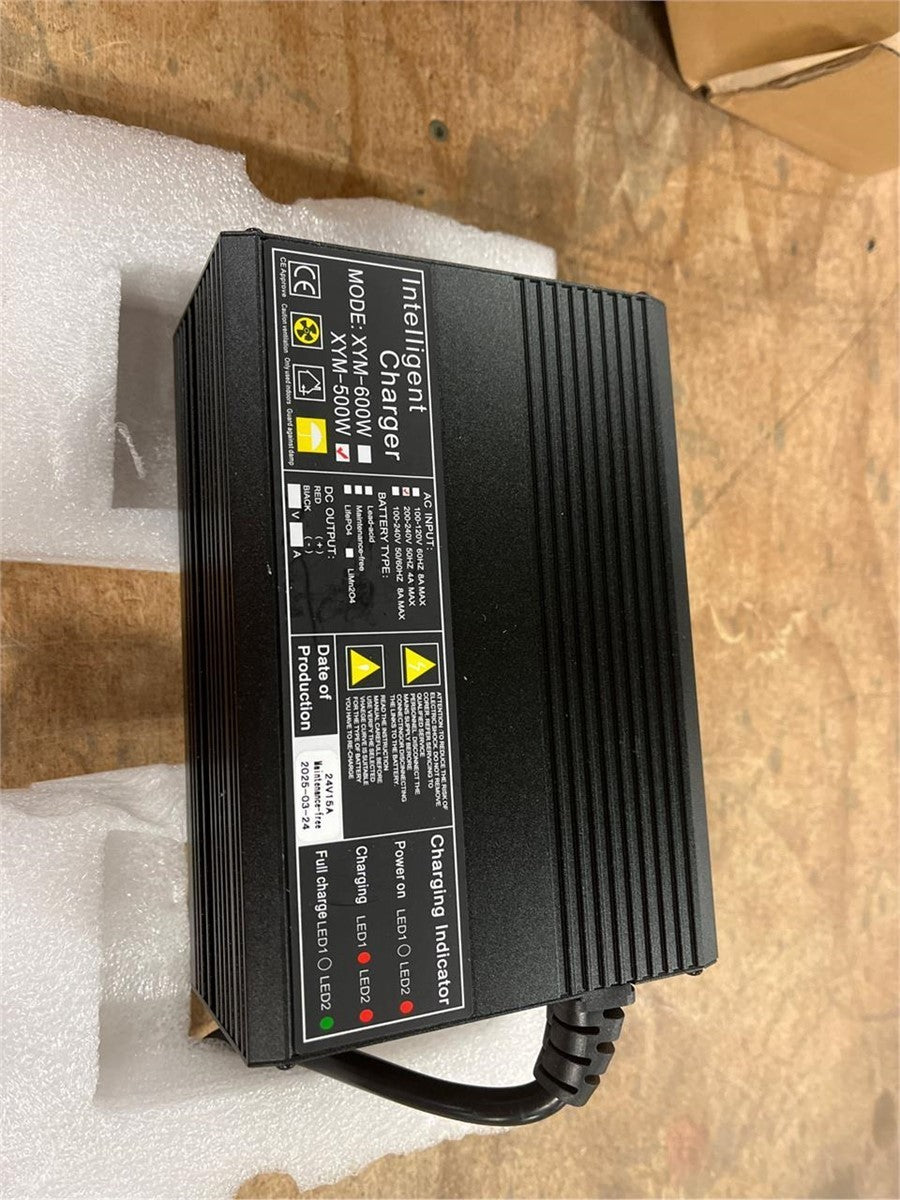

•     Indicators: Power On LED, Charging LED (red), Full Charge LED (green)

•     Cooling: Forced air with internal fan

•     Protections: Overcharge, overheat, short-circuit, reverse polarity, over-current

•     Certifications: CE Approved

•     Housing: Aluminum alloy heatsink (heavy-duty commercial grade)

•     Dimensions: 10.63" × 7.09" × 5.12" (270 × 180 × 130 mm)

•     Weight: ~3.3 lbs (1.5 kg) — estimated per category standard

•     Included: Charger, AC power cord (IEC C13), pre-wired gray SB50 output connector, spare gray SB50 connector, user manual

•     Condition: New in original box

Item Specifics

•     Brand: JURPLIX

•     MPN: XYM-500W (verify on unit; may also show as 24V 15A)

•     Type: Battery Charger / Floor Scrubber Charger

•     Output Voltage: 24 V DC

•     Output Current: 15 A

•     Output Power: 360 W

•     Input Voltage: 100-240V AC (universal)

•     Battery Type: Lead-Acid — AGM, Wet/Flooded, Gel

•     Connector Type: Anderson SB50 — Gray (35mm / 1-3/8")

•     Compatible Equipment: Tennant T2, T3, T5, T7, T300, 1610; Nobles SS3, SS5, Speed Scrub Ride; Clarke Focus II, Encore S20; TASKI Swingo; Viper AS430C; NSS Wrangler; Nilfisk-Advance SC450; Brain Corporation ICE; Tomcat Factory Cat

•     Intended Use: Commercial floor scrubber, sweeper, walk-behind cleaner, ride-on scrubber, pallet jack, industrial cleaning equipment

•     Certification: CE Approved

•     Features: 3-Stage Automatic Charging, Short-Circuit Protection, Overcharge Protection, Overheat Protection, Reverse Polarity Protection, Cooling Fan, LED Indicators

•     Color: Black (charger), Gray (connector)

•     Weight: ~3.3 lbs

•     Dimensions: 10.63 × 7.09 × 5.12 in

•     Condition: New

Order today from E-bayond Expectations LLC — in stock, ships same or next day with tracking. Click "Buy It Now" to get your scrubber back online.
